Search found 10 matches

by alackofcolor
Tue May 16, 2017 2:06 pm
Forum: Tech Support
Topic: Diagnose this PETG problem
Replies: 3
Views: 6372

Re: Diagnose this PETG problem

It looks like many of the perimeter threads pulled loose from the infill on those protruding features, which happens more on concave surfaces like the inside of that sheet. Print the infill pattern first, then the perimeter threads, so they have something to hang onto. Yeah, there are a bunch of th...
by alackofcolor
Tue May 16, 2017 4:48 am
Forum: Tech Support
Topic: Diagnose this PETG problem
Replies: 3
Views: 6372

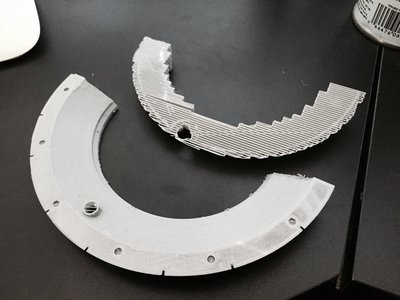

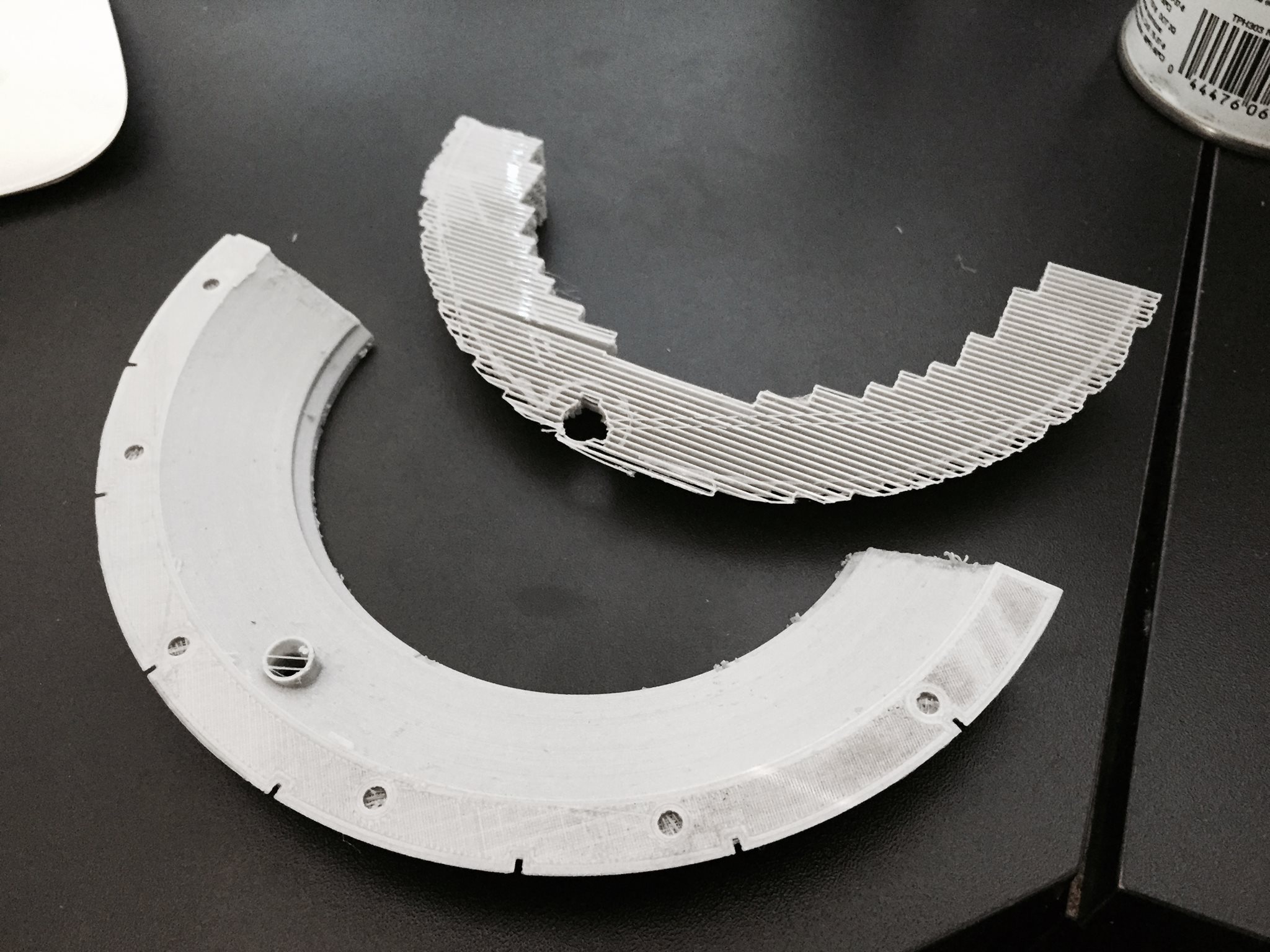

Diagnose this PETG problem

I've read other posts on the forum about printing PETG and have adopted most of those print settings, but I'm still experiencing some issues. The outside of this piece looks pretty nice, but the inside surface, where all of the layer changes occur looks pretty bad (see attached picture). It has blob...
by alackofcolor
Mon Apr 17, 2017 12:52 am
Forum: Modifications
Topic: My enclosure
Replies: 10
Views: 34353

Re: My enclosure

jferguson wrote:alackofcolor,
Well it's just plain superb. It would be wonderful if you could share your design.

john ferguson
Thank you. I designed it in Solidworks, so I just need to figure out the best way to put the design out there because I'm sure most people don't have access to it.
by alackofcolor
Sun Apr 16, 2017 11:27 pm
Forum: Modifications
Topic: My enclosure
Replies: 10
Views: 34353

Re: My enclosure

alackofcolor, That is a very nice enclosure and especially the connectors. I like how you've set it up for a sliding panel. Have you found that the single slider is sufficient for ordinary access to the M2? What do you do when you need more access? With the bed all the way down, I find that it's mo...
by alackofcolor
Sun Apr 16, 2017 9:40 pm
Forum: Modifications
Topic: My enclosure
Replies: 10
Views: 34353

Re: My enclosure

Yeah, it looks big, but there's really no wiggle room left in there. Probably less than a quarter inch in all directions.
by alackofcolor
Sun Apr 16, 2017 8:31 pm
Forum: Modifications
Topic: My enclosure
Replies: 10
Views: 34353

My enclosure

I figured I'd post pictures of the enclosure I designed. It's based on 1/4'' plexiglass, held together by 3D printed brackets. The spool is mounted on the outside of the box to keep it small and a routed slot is cut in the top to feed the filament in. The front panel slides up giving generous access...
by alackofcolor
Sun May 15, 2016 11:46 pm
Forum: Getting Started
Topic: Weird texture on underside of prints
Replies: 7
Views: 11663

Re: Weird texture on underside of prints

These are great suggestions everyone, thanks. I'm already printing at 0.1 mm, and my extrusion width is 0.40 with the newest nozzle installed. I never knew you could make that wider. I noticed that I was printing from the outside-in, which I'm definitely going to change now. I'm also going to decrea...
by alackofcolor
Sun May 15, 2016 1:07 pm
Forum: Getting Started
Topic: Weird texture on underside of prints
Replies: 7
Views: 11663

Re: Weird texture on underside of prints

Well here's a pictures of the the same part (printed in two pieces) that I found, printed with a different printer. The underside of theirs is smooth after the support was removed.
by alackofcolor
Sat May 14, 2016 5:13 am
Forum: Getting Started
Topic: Weird texture on underside of prints
Replies: 7
Views: 11663

Weird texture on underside of prints

I'm getting a strange, rough texture on the underside of prints that have a domed top (see attached picture). This seems to occur with and without support. Printing with Hatchbox filament, 220 C, with Simplify3D. Any idea what causes this and how I can get a smoother texture on the underside? IMG_42...
by alackofcolor
Mon Apr 04, 2016 11:19 pm
Forum: Tech Support
Topic: Glass cracked during leveling
Replies: 4
Views: 5020

Glass cracked during leveling

So I was leveling my new Makergear M2 according to the instructions in the Quick Start app when I heard a loud crack, which upon inspection was caused by one of the allen screws driving into the glass plate and breaking the corner off. Looking at it closer, I noticed that unlike the other three corn...
