Single V4 Extruder First Look.

Post by sthone » Mon Feb 09, 2015 3:05 am

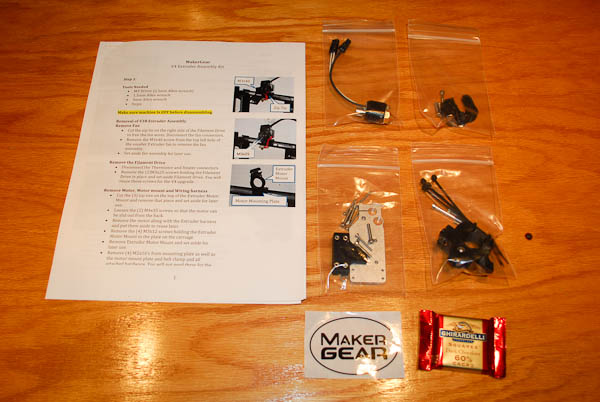

This is a first Look at the Single V4 Extruder. As with the printer everything comes nicely packaged in zip lock bags. While the instructions are pretty straight forward some of the pictures are a little dark and hard to see so here is a quick run down with some more pictures of my installation. (assuming I did things right.)

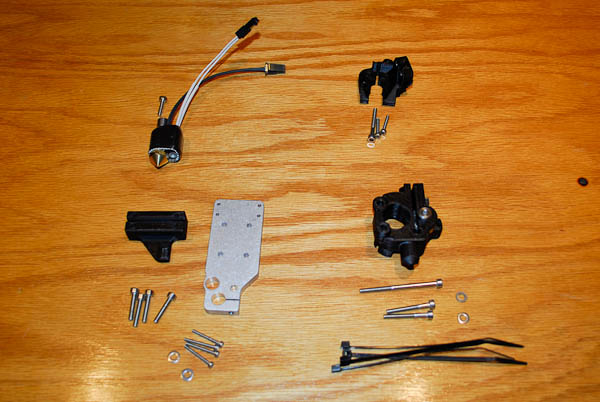

Here we have all the bits and pieces of the Kit laid out.

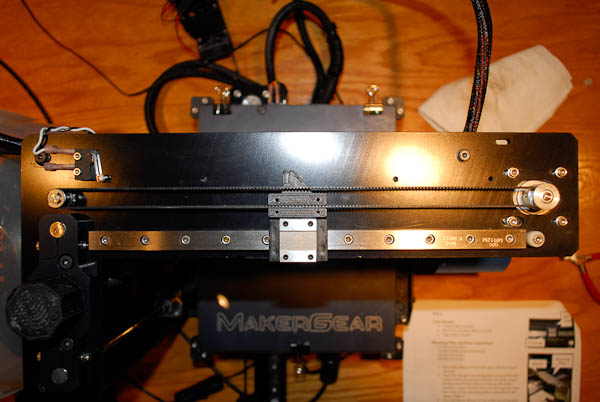

After removing all of the V3b Parts the first step was to install the new Belt Clamp.

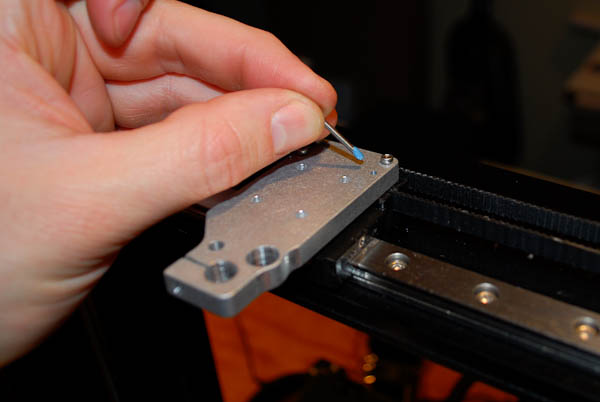

Next the new Mounting Plate is attached to the Belt Clamp using the new longer screws. Don't try to reuse the old washers, if you do the screws won't reach the nuts (I use blue Locktite on all the screws on my printer.)

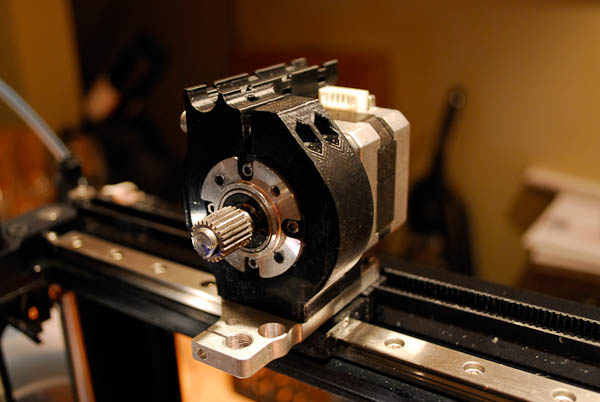

The Motor mount is is then attached to the mounting plate and the X Carriage, then the motor can be remounted. (I use a beefed up version.)
Last edited by sthone on Mon Feb 09, 2015 5:58 pm, edited 2 times in total.
____________________________________________________
See my projects at https://www.theneverendingprojectslist.com

User avatar
sthone
Posts: 874
Joined: Tue Jul 08, 2014 8:25 pm
Location: Connecticut
Contact:

Re: Single V4 Extruder Fisrt Look.

Post by sthone » Mon Feb 09, 2015 3:11 am

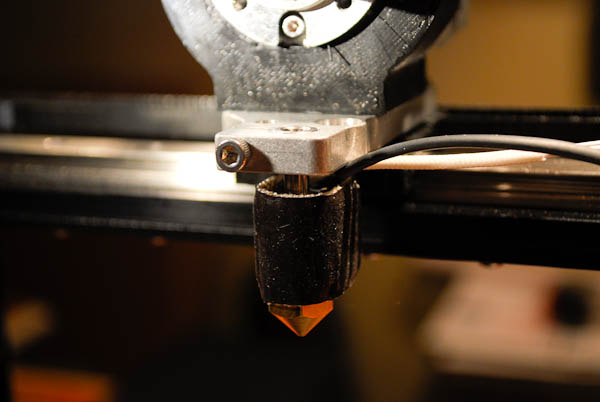

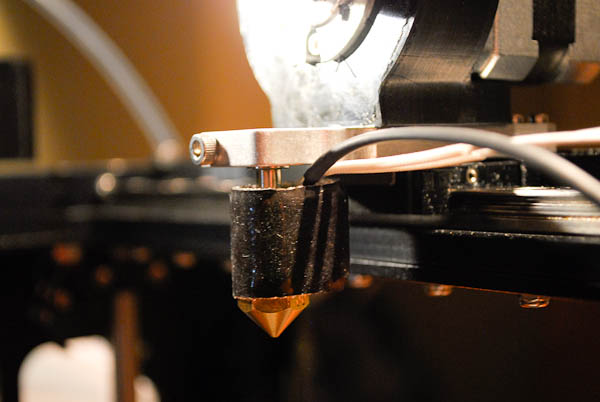

The Hot End Assembly was then mounted to the Mounting Plate.

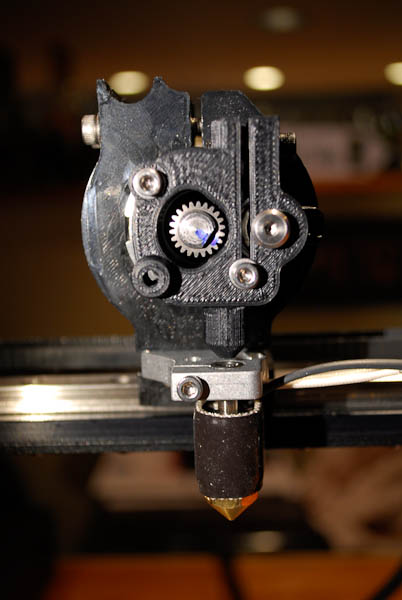

Next the Filament Drive Assembly is installed to the Motor.

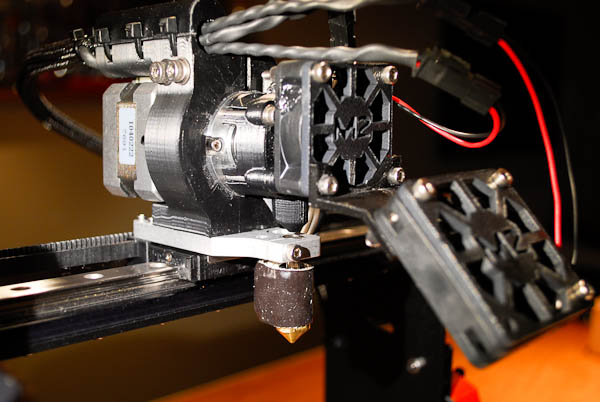

A little rearranging of the fan screws was next. I use a different lower fan bracket so my setup is a little different than the stock mount.

Here the wires are zip tied back in place.
____________________________________________________
See my projects at https://www.theneverendingprojectslist.com

User avatar
sthone
Posts: 874
Joined: Tue Jul 08, 2014 8:25 pm
Location: Connecticut
Contact:

Re: Single V4 Extruder Fisrt Look.

Post by sthone » Mon Feb 09, 2015 3:19 am

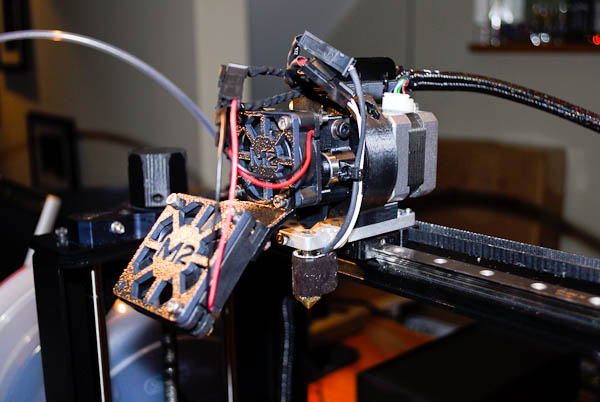

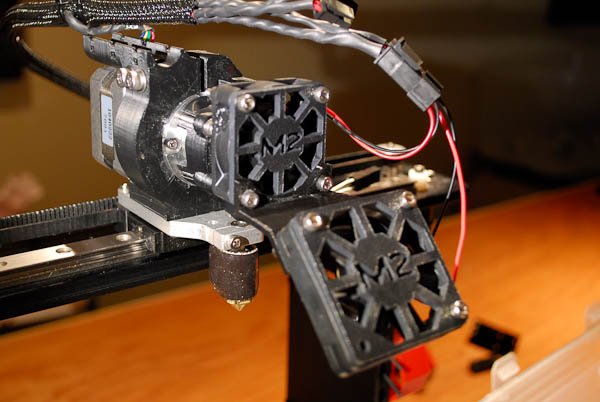

... and this is what the almost finished V4 looks like.

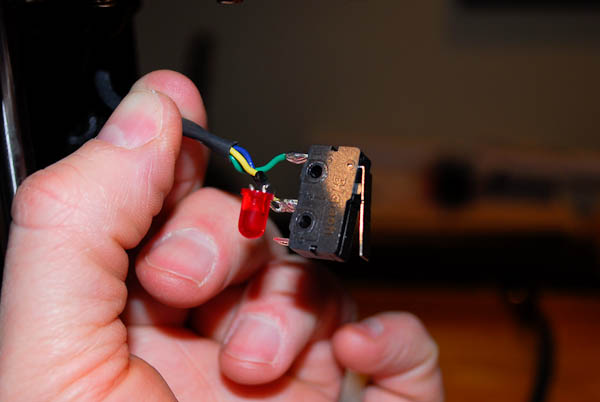

The Z stop end clamp needs replacing also, after removing the stock clamp the LED needs to be bend into position to fit into the new clamp.

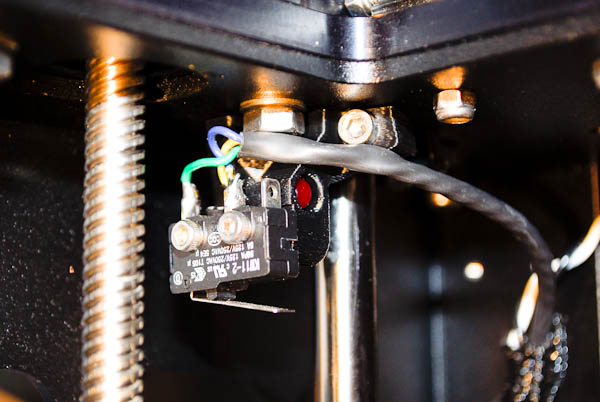

After pushing the LED into the new clamp and mounting the End Stop Switch the clamp is attached back onto the Shaft.

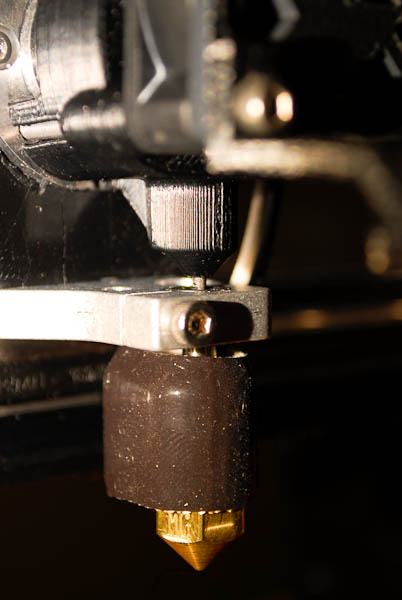

Here you can see the cool part about the V4, the hot the Hot End is separate from the Filament Drive. You can make out the Black Filament between the two.

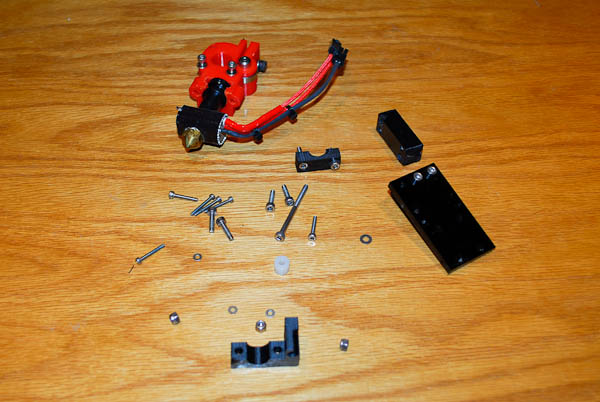

After all is said and done these are the left over parts. So far so good now I just have to go print something to test it out.
-Steve
____________________________________________________
See my projects at https://www.theneverendingprojectslist.com

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Single V4 Extruder Fisrt Look.

Post by jimc » Mon Feb 09, 2015 3:32 am

good write up! that is a tiny thing. one thing i wonder about is why is there still a 40mm fan blowing on the filament drive. when i went with the e3d about 8 mos ago i totally eliminated that fan since it has the 30mm one blowing on the cooling fins on the hot end itself. the filament drive doesnt get hot. my printer has been running all day and i just felt the extruder drive gear shaft and its room temp. no air blowing on it at all. hmm interesting.

User avatar
sthone
Posts: 874
Joined: Tue Jul 08, 2014 8:25 pm
Location: Connecticut
Contact:

Re: Single V4 Extruder Fisrt Look.

Post by sthone » Mon Feb 09, 2015 3:45 am

jimc wrote:one thing i wonder about is why is there still a 40mm fan blowing on the filament drive.
I was going to ask that same question... with the separation between the hot end and the filament drive now I would think it was pretty pointless myself. I would love to get rid of it, I'm on my third one those things are magnets for allen wrenches :lol: I'm going to wait and see what the experts think first before removing it though.

-Steve
____________________________________________________
See my projects at https://www.theneverendingprojectslist.com

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Single V4 Extruder Fisrt Look.

Post by jimc » Mon Feb 09, 2015 3:50 am

yea..got me :? my printer goes 16 hrs a day 7 days a week and i havent had one for 8 mos. never had a bit of trouble or saw any negative effects. its probably just there so 2 12v fans can be run in series on a 24v machine. lol

User avatar
insta
Posts: 2000
Joined: Tue Sep 16, 2014 3:59 am

Re: Single V4 Extruder Fisrt Look.

Post by insta » Mon Feb 09, 2015 3:51 am

sthone wrote:
jimc wrote:one thing i wonder about is why is there still a 40mm fan blowing on the filament drive.
I was going to ask that same question... with the separation between the hot end and the filament drive now I would think it was pretty pointless myself. I would love to get rid of it, I'm on my third one those things are magnets for allen wrenches :lol: I'm going to wait and see what the experts think first before removing it though.

-Steve
It was originally because the extruder motor itself ran hot, and after a dozen hours the heat would creep up to the gear and start melting PLA. Whether or not that's still the case I'm not sure, but that's the historic reason.
Custom 3D printing for you or your business -- quote [at] pingring.org

benavery
Posts: 110
Joined: Wed Jun 18, 2014 6:31 pm

Re: Single V4 Extruder Fisrt Look.

Post by benavery » Mon Feb 09, 2015 7:59 am

Anyone have recommendations on what kind of settings to start with for the V4 (versus v3b). I recall seeing mention of reducing coast/retraction. Should we be able to use the same temps as v3b ?

nelsond6
Posts: 16
Joined: Wed Jan 07, 2015 9:36 pm

Re: Single V4 Extruder First Look.

Post by nelsond6 » Mon Feb 09, 2015 11:32 pm

Thanks sthone for posting this first look. I went ahead and ordered it as it seemed a little easier to install then the E3dv6. Plus I really want to support MakerGear.

-Dan
