Dual extruder

The official subforum for discussion of the installation and use of the official M2 Dual Extruder upgrade.
rsilvers
Posts: 184
Joined: Wed Apr 09, 2014 11:07 pm

Dual extruder

Post by rsilvers » Wed Apr 09, 2014 11:08 pm

When can I buy a dual extruder?

Dale Reed
Posts: 376
Joined: Thu Apr 10, 2014 1:39 am
Location: Cleveland Heights, Ohio USA

Re: Dual extruder

Post by Dale Reed » Thu Apr 10, 2014 1:53 am

Don't know a date, but saw a prototype at MG HQ today. Likey likey.

Dale

User avatar
Dave K
Posts: 102
Joined: Thu Apr 10, 2014 3:13 am

Re: Dual extruder

Post by Dave K » Thu Apr 10, 2014 3:29 am

Dale, did you get a feel for the effective x-axis dimension with the dual extruders? I envy that you got to take a look at the prototype!

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Dual extruder

Post by jimc » Thu Apr 10, 2014 3:45 am

dave, rick posted a pic yesterday on the google group. not sure if you saw it. the hot ends do look very close together so i would imagine the X has not shrunk in size by too much. hard to tell though.

User avatar
Dave K
Posts: 102
Joined: Thu Apr 10, 2014 3:13 am

Re: Dual extruder

Post by Dave K » Thu Apr 10, 2014 5:22 am

jimc wrote:dave, rick posted a pic yesterday on the google group. not sure if you saw it. the hot ends do look very close together so i would imagine the X has not shrunk in size by too much. hard to tell though.
Thanks, Jim, I just searched for it. I've seen dual extruders that looked like they were designed as two full-sized extruders ganged together side-by-side. MG's design looks pretty compact. Nice!

sprior
Posts: 381
Joined: Thu Apr 10, 2014 8:37 pm

Re: Dual extruder

Post by sprior » Fri Apr 11, 2014 5:18 am

Can you post a link to the pic? I can't find it.

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Dual extruder

Post by jimc » Fri Apr 11, 2014 5:24 am


Dale Reed
Posts: 376
Joined: Thu Apr 10, 2014 1:39 am
Location: Cleveland Heights, Ohio USA

Re: Dual extruder

Post by Dale Reed » Fri Apr 11, 2014 9:41 pm

jimc wrote:dave, rick posted a pic yesterday on the google group. not sure if you saw it. the hot ends do look very close together so i would imagine the X has not shrunk in size by too much. hard to tell though.
All,

Those are both 50mm fans, so you can scale from there. There's a neat trick they did with the extruder motors, gears, and printed plastic parts, offsetting vertically, to get the extruders as close together as possible in the X (the motors are basically touching sides) while still keeping the nozzles at the same height. You'd have to see it --- I can't describe it. I do, however, want to buy it! And I don't even really have a need right now for dual extruders. But I'm thinking of something dual color, like H-P used to do with double-shot injection molding the legends on their calculator keys so they could never wear off. Same concept, different device.

Dale

User avatar
rpollack
Posts: 488
Joined: Wed Apr 09, 2014 9:01 pm
Location: Beachwood, OH
Contact:

Re: Dual extruder

Post by rpollack » Fri Apr 11, 2014 9:46 pm

I will get photos of the final version (or very close to the final version) posted in the next few days. in the photo that was posted in the google group - the vertical fan is 50mm and the lower, angled fan is 40mm (for reference). also, the v4 is all metal.

User avatar
rpollack
Posts: 488
Joined: Wed Apr 09, 2014 9:01 pm
Location: Beachwood, OH
Contact:

Re: Dual extruder

Post by rpollack » Mon Apr 14, 2014 7:38 pm

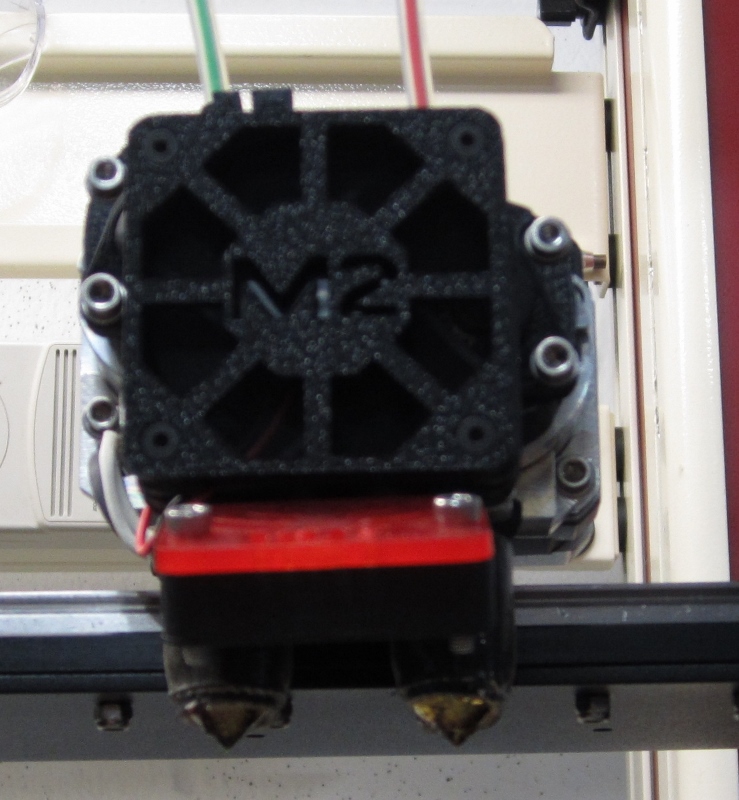

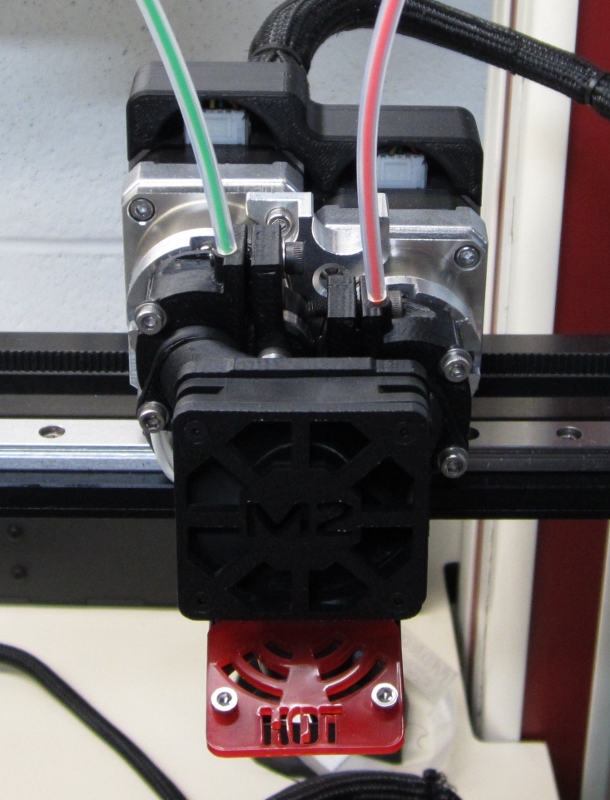

Here are some additional photos of the dual v4.
