What is this witchcraft

Post by insta » Thu Apr 09, 2015 6:49 pm

http://www.mosaicmanufacturing.com/

They show an M2 but no mechanism on how they make it work :(
Custom 3D printing for you or your business -- quote [at] pingring.org

Bratag
Posts: 438
Joined: Wed Jan 14, 2015 5:33 am

Re: What is this witchcraft

Post by Bratag » Thu Apr 09, 2015 7:17 pm

I may be wrong but it looks in essence to be a intermediary box between the extruder and the filament. Multiple colors of filament go in and a single comes out. My guess is then that the print is actually fed into the new box which is in turn connected to the printer itself. As the print progresses the third party box switches constructs a filament that corresponds with the required color

For example 20mm Red -> 10mm Green -> 100mm Yellow

Interesting idea but it will very much depend on how their software integrates with the current slicers. This is an entirely new layer above the gcode itself.

EDIT: Looks like they say the box doesn't connect to the printer directly ... they talk about a sensor that tracks the the filament movement. Now I am as confused as you Insta. No idea how the hell they determine where the print is at.

KiddingMe
Posts: 47
Joined: Wed Dec 31, 2014 12:35 am

Re: What is this witchcraft

Post by KiddingMe » Thu Apr 09, 2015 7:26 pm

That's really neat!

jsc
Posts: 1864
Joined: Thu Apr 10, 2014 4:00 am

Re: What is this witchcraft

Post by jsc » Thu Apr 09, 2015 8:27 pm

I'm still interested in getting an easy filament splicer to do that sort of thing manually. That kickstarter splicer seems like it was a minor flop, people complain of it tripping house breakers. I did read up on it, though, and learned about PTC resistors, which maintain a certain temperature when fed a given voltage without the need for active control. They're not very expensive, either. The hard part is coming up with a way of getting a heat conductive sleeve in two halves, so it can come apart (hard for someone with hardly any appropriate tools). I thought of splitting a brass tube, but 1.75mm is not a standard tube size. I guess I could get one printed at Shapeways.

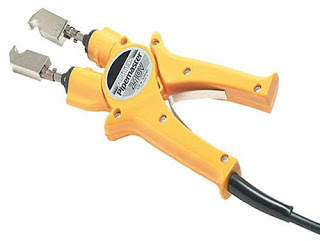

Ideally I want something like this:
Maybe with PTC resistors on both sides, powered off a hefty LiPo 12V.

Anyone have any machine tools? :-)

User avatar
insta
Posts: 2006
Joined: Tue Sep 16, 2014 3:59 am

Re: What is this witchcraft

Post by insta » Thu Apr 09, 2015 9:07 pm

mcmaster 2900A227 + 88605K22 + square steel bar + flat steel plate

Put the shim inside the brass tube, roll back and forth with the steel bar against the steel plate until the tube compresses down
Custom 3D printing for you or your business -- quote [at] pingring.org

pandelume
Posts: 30
Joined: Mon Jun 02, 2014 6:41 am

Re: What is this witchcraft

Post by pandelume » Thu Apr 09, 2015 11:18 pm

Perhaps what's going on here is the equivalent of a fancy gcode viewer with color data mapped on top. So basically, the color mixing device reads the slicer code and says "layer 0 to layer 50 is color 'a', which works out to 'b' mm of filament", and "layers 51 to 100 are color 'c', which is 'd' mm of filament", and so on. Then it just watches the color 'a' filament and waits until it gets to 'b' mm of extruded filament and then performs an automated splice of some kind to color 'c', which it watches until 'd' mm of filament are used, etc., etc.

If so, it's an interesting solution. Once setup, you could presumably run the same code on the printer and have different color combinations simply by tweaking the mixer settings.

User avatar
rpollack
Posts: 492
Joined: Wed Apr 09, 2014 9:01 pm
Location: Beachwood, OH
Contact:

Re: What is this witchcraft

Post by rpollack » Fri Apr 10, 2015 1:08 am

That piece of tape on the extruder that says RW...those are Rob's initials. That is an internal QC tag from a batch test and should have been removed prior to shipping!

rsilvers
Posts: 184
Joined: Wed Apr 09, 2014 11:07 pm

Re: What is this witchcraft

Post by rsilvers » Fri Apr 10, 2015 1:18 am

I like the idea and would want colour printing. I just can't picture them making a reliable automatic splicer. It would be great if it worked without issues.

rsilvers
Posts: 184
Joined: Wed Apr 09, 2014 11:07 pm

Re: What is this witchcraft

Post by rsilvers » Fri Apr 10, 2015 1:31 am

jsc wrote:I'm still interested in getting an easy filament splicer to do that sort of thing manually
Just print a jig and use it as a guide to superglue it. According to the internet, the melting point of set superglue is 187°C, lower than any print temperature. If you are lucky, it will flow right through the nozzle. If not, then it will be the perfect nozzle obstruction. I would try it now except I am not at home and don't know where my extra nozzles are.

User avatar
insta
Posts: 2006
Joined: Tue Sep 16, 2014 3:59 am

Re: What is this witchcraft

Post by insta » Fri Apr 10, 2015 4:54 am

rpollack wrote:That piece of tape on the extruder that says RW...those are Rob's initials. That is an internal QC tag from a batch test and should have been removed prior to shipping!
Haha this is the best part. Is Rob selling parts on the side? ;)
Custom 3D printing for you or your business -- quote [at] pingring.org
