Post by bignordique » Wed Nov 04, 2015 5:34 am

A primary reason why I purchased my M2 is because of its relatively large print bed. The initial task for the printer involves printing a relatively large number of pieces (about 500). These pieces fit 4 up on the M2 platen.

Printing 4 up does not increase print speed, but it does improve printer utilization and therefore thruput. For example, if I start a print last thing in the evening, 4 up gives me four pieces overnight, whereas 1 up yields only one.

I've now learned that taking an object that prints well at 1 up to 4 up is not so straightforward. The basic problem is the extruder doesn't behave well through extrusion stop/start. When printing 4 up, there are usually many extrusion stop/starts between pieces. And the duration of these stop/start cycles is relatively long.

The extrusion process is dynamic. When extruding continuously, an equilibrium is achieved in the extruder and this gives a uniform bead.

Retraction is a technique for synchronizing extruder equilibrium with extruder movement. My experiments with retraction so far have not been very successful. It seems like the slicer needs to drive the extruder material and extruder displacement such that a uniform bead is achieved. I use slicr3r. Its retraction algorithm doesn't seem to think this way. Perhaps other slicers are more better?

I've had good success when I am able to coerce my object such that it looks like a single piece (no stop/start) to the extruder. But alas, this is not always possible.

Without having any practical knowledge of FDM printing, I had assumed I could simply squirt molten plastic wherever I wanted it. For the most part these objects I'm printing are well suited to FDM. But for my use model (4 up), the difficulties around extruder stop/start turn out to be a major and unexpected consideration.

I don't have any answers, but perhaps reporting my experience will help others.

bignordique

User avatar
rpollack
Posts: 491
Joined: Wed Apr 09, 2014 9:01 pm
Location: Beachwood, OH
Contact:

Re: Comments on (sorta) high volume FDM printing

Post by rpollack » Wed Nov 04, 2015 11:21 am

I am not sure what you are printing but we run plates of production parts everyday. What you are describing should not be a problem. It sounds like a settings issue.

Rick

User avatar
ednisley
Posts: 1150
Joined: Fri Apr 11, 2014 5:34 pm
Location: Halfway up the Hudson
Contact:

Re: Comments on (sorta) high volume FDM printing

Post by ednisley » Wed Nov 04, 2015 2:34 pm

bignordique wrote:the extruder doesn't behave well through extrusion stop/start
I've printed 257 interconnected chain mail links that cover the entire platform:
http://softsolder.com/2014/12/05/3d-pri ... -mm-sheet/


Absolutely no problem with retraction (or anything else) on the 117 armor buttons atop the links; the whole sheet is nothing but stop-start retraction.

I think if you're having trouble with retraction, it's probably due to mechanical trouble in the extruder or a mis-set slicer parameter. From what I read around here, some exotic filaments don't handle retraction very well, but that doesn't seem to be what you're experiencing.
reporting my experience
It'd be helpful to see what you're printing, pictures being worth a thousand words & all that, plus more about the material and slicer parameters.

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Comments on (sorta) high volume FDM printing

Post by jimc » Wed Nov 04, 2015 3:22 pm

Yes same here. I print diplicated parts all yhe time. Usually 6 per plate and each oart has 4-8 islands sonlits if hopping around. My parts come out very clean. I usually have 3 printers going at the same time all producing the same parts with no issue. Its all a matter if tuning. Your not going to get away from retraction. Every model will always have hundreds or thousands of retracts. It should be wuite controllable. Damp fialment can cause very inconsistant ozzing making tuning retractions impossible. Just a thought

User avatar
SouthSideofdaSky
Posts: 103
Joined: Wed Jul 09, 2014 9:35 pm

Re: Comments on (sorta) high volume FDM printing

Post by SouthSideofdaSky » Wed Nov 04, 2015 3:40 pm

Ditto what others have said. I print duplicated parts all the time for production environments. I've done up to 32 on one plate but am 100% confident I could do more if I wanted to. It just takes some fine tuning of the settings. If you post the settings you are using I'm sure the experts and experienced amateurs here will be able to help.

bignordique
Posts: 32
Joined: Wed Jun 10, 2015 6:44 pm

Re: Comments on (sorta) high volume FDM printing

Post by bignordique » Wed Nov 04, 2015 5:57 pm

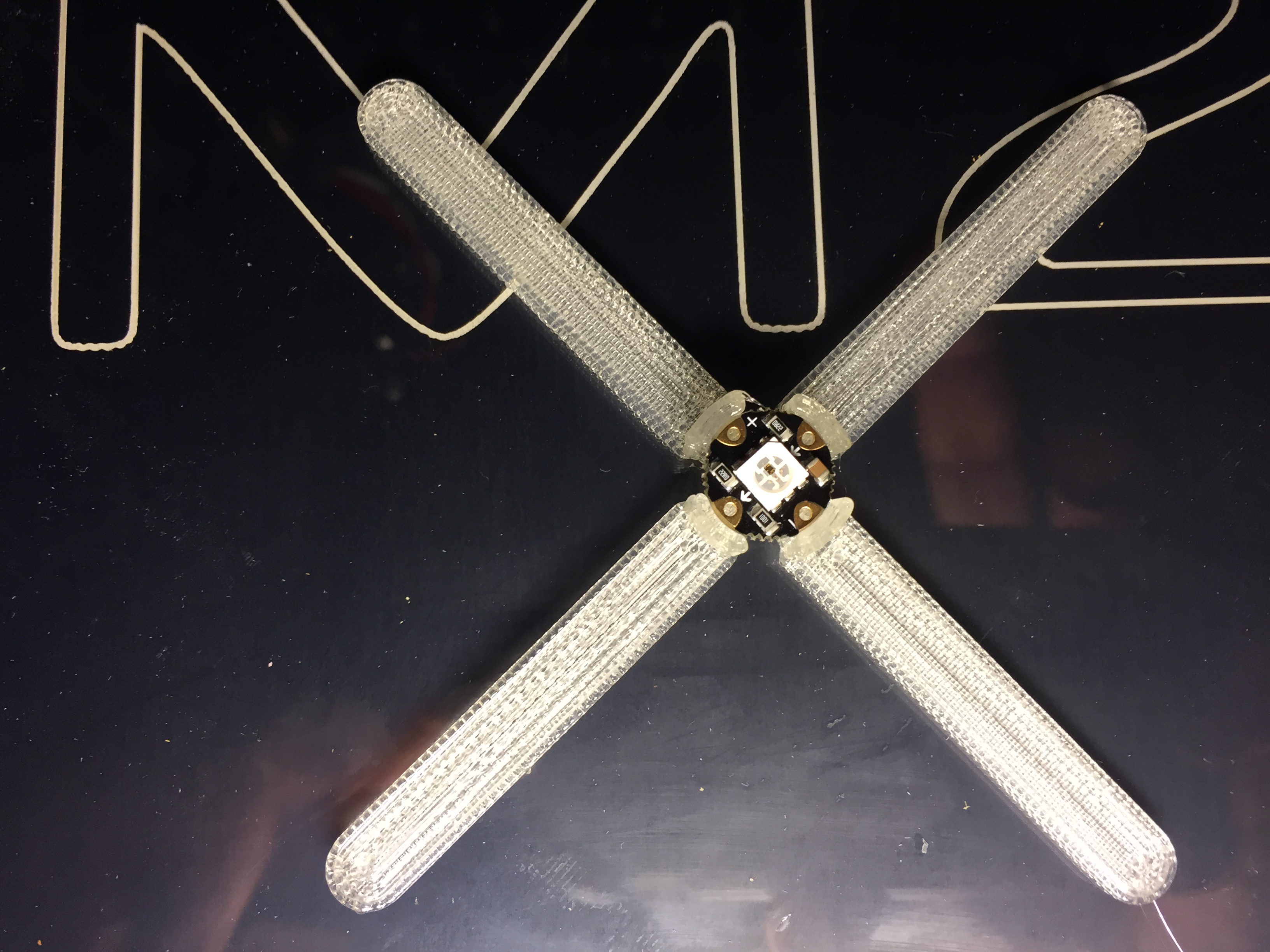

Here is the completed object:
I'm using clear PLA and a 0.35 mm nozzle.

In the center is a small PC board about the diameter of, but thinner than a dime.

This PC board is a snap fit into the plastic. I had to work pretty hard on the design of this snap fit feature to get it to work as intended. It includes features 1 and 2 extrusion threads wide. I've made about 50 of these 1up with reasonably good/consistent results.

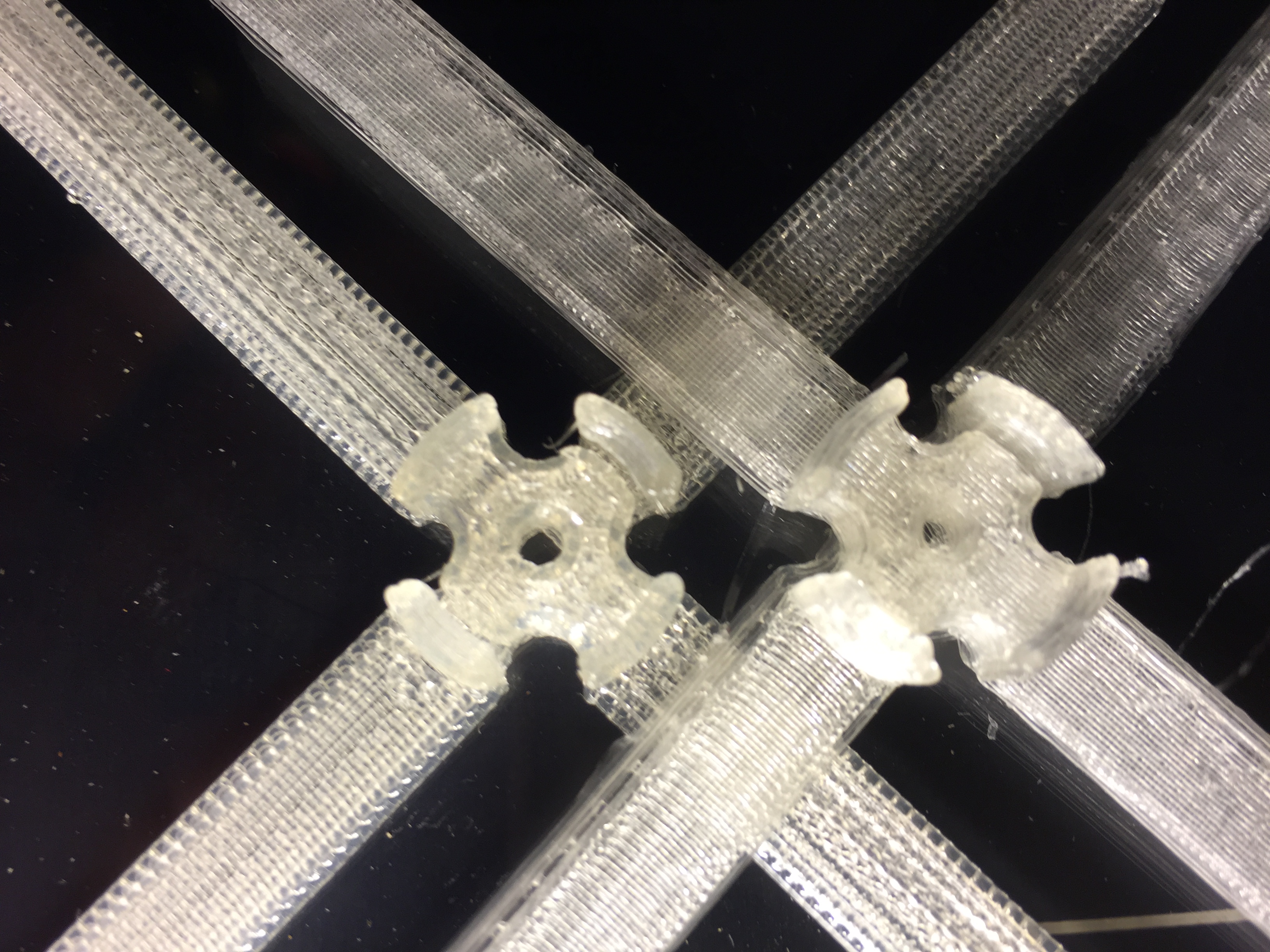

Here are two of the objects. 1up on the left. 4 up on the right. Not the greatest picture, best I could do with the iPhone.
One of the more striking differences between the two is the translucence. The 1up print is much more translucent. I attribute this loss of translucence to extrusion stop, transit, extrusion start. Where the transit is relatively long. I've see the same effect in other prints.

The picture doesn't totally do justice to what I can see up close of course. But if you look closely, you'll notice much more globbing, boogers, etc on the 4up print.

The 4up prints I'm making are probably usable, but the fidelity is not as good as the one up. I'm concerned that due to normal production variances I'll end up with unusable parts when printed 4 up.

Its important to understand that even the 1 up print has quite a bit of extruder stop start. The big difference with the 4 up is the length of time the extruder is stopped.

There are two significant differences compared to Ed's chain mail. Extruder stop time, and the precision requirements of the finished objects. Don't know much about the chain mail but I would not expect the precision requirements to be too high.

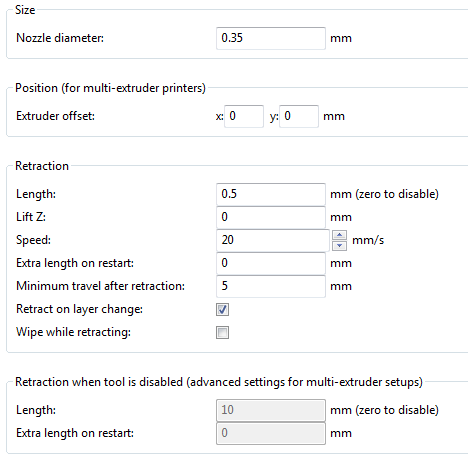

Here are my slic3r retraction settings:
