Kinematic mirror mount

Post by davidb » Fri Aug 01, 2014 11:51 pm

A test print to see whether I can make usable optomechanics - looking very promising thus far ...
(216.35 KiB) Downloaded 710 times

chad
Posts: 35
Joined: Thu Jun 26, 2014 9:24 am

Re: Kinematic mirror mount

Post by chad » Mon Aug 04, 2014 2:57 am

I've done some experimenting here too. Long term stability isn't going to be 6061 but if you don't mind tweaking a little more should work for test stuff.
Hell of a lot cheaper than thor for proving out ideas.

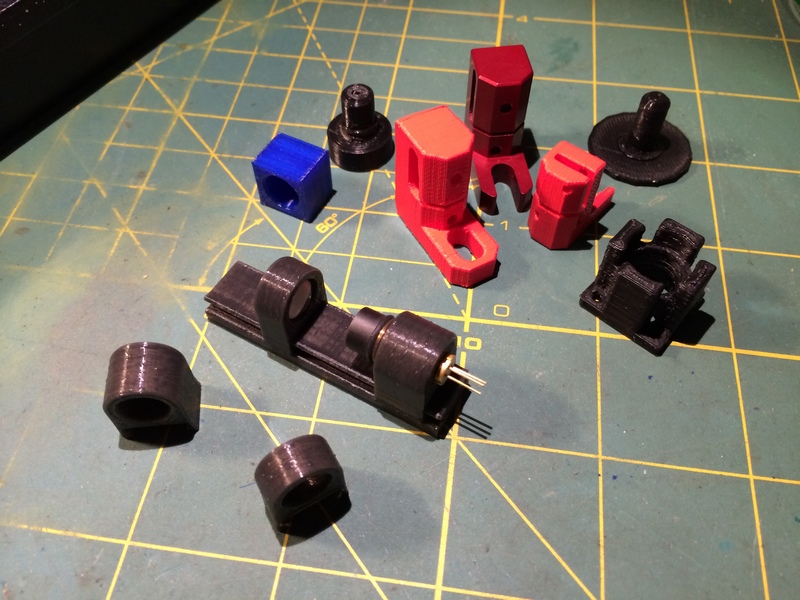

First pic you can see some flexure mounts that I machined (red) and printed. (upper right three) and some little optics test parts.

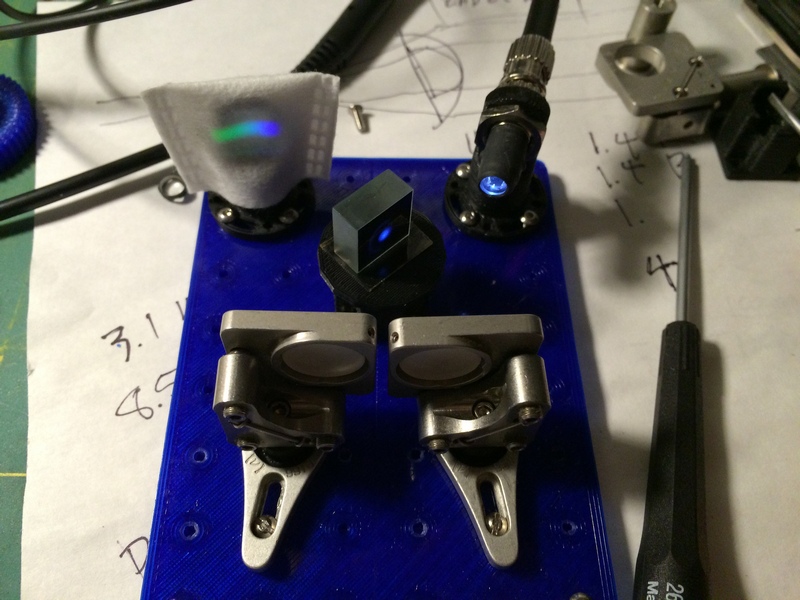

Next is test rig for a scanning Grating spectrometer. Needed some odd parts, could machine them, printed them instead.. Worked great!


Chad
