Fishing lures

Post by Capt. John » Thu Sep 04, 2014 2:12 am

With Jimc's help I've made close to 30 prototype lure to fish for Salmon in Lk. MI.
Had to coat the plugs with glaze to prevent leaks:

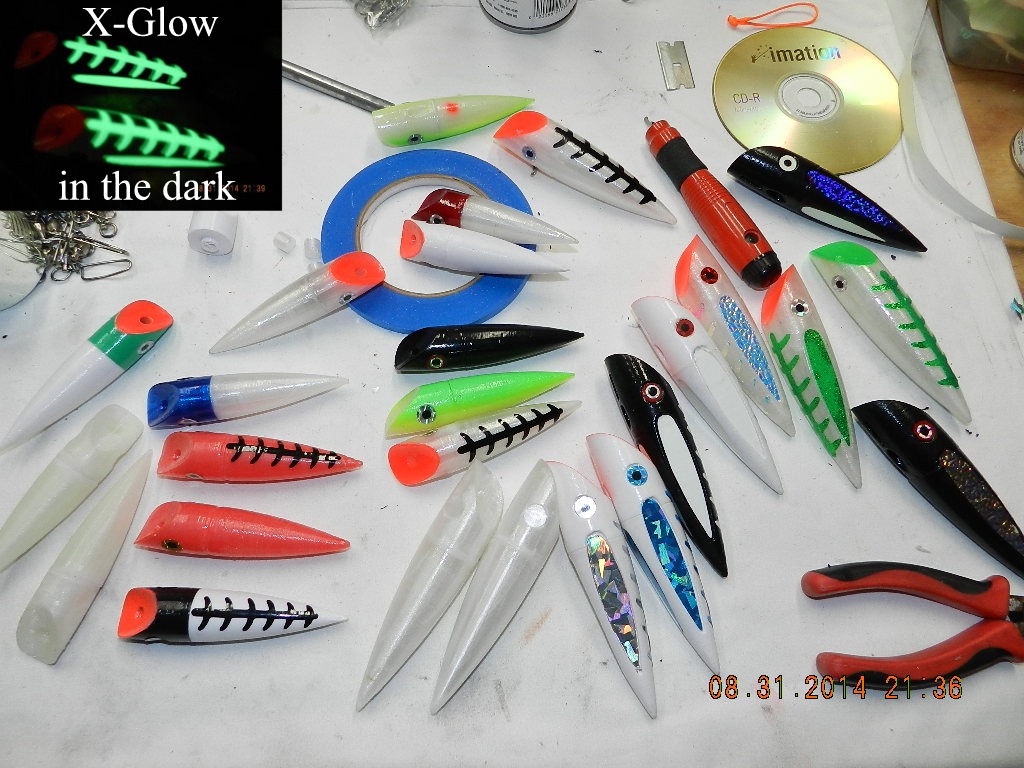

Lures 001.jpg
Lures 001.jpg (218.56 KiB) Viewed 5996 times
If purchased retail? ....the above lures would be over $300 bucks and be made in China.
All lures were made with PET+ for durability when fishing at and deeper down than 100'
where water pressure is extreme.
Capt. John
Manistee, Michigan
Reel Amateur at 3D printing
Fishing Tackle Manufacturer & Webmaster for:
http://www.michiganangler.com
http://www.michigansportsman.com

markb
Posts: 180
Joined: Tue Apr 15, 2014 11:06 pm

Re: Fishing lures

Post by markb » Thu Sep 04, 2014 3:00 am

This is very cool.

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Fishing lures

Post by jimc » Thu Sep 04, 2014 4:08 am

thats great john. nice to see them all done and finished off.

User avatar
Capt. John
Posts: 271
Joined: Sun Apr 13, 2014 7:48 pm
Location: Manistee, MI
Contact:

Re: Fishing lures

Post by Capt. John » Thu Sep 04, 2014 12:55 pm

Have a drop knife vinyl letter sign cutter and was able to make the die cuts for the inserts.
Basic air brushing on the noses and it's a far better finished product than it's Chinese counterpart.

When time allows, these lure files will be added to my Thingiverse account.

While I have no interest in selling these plugs commercially, I hope it will wakes up the fishing world
on what can be done with a 3D printer when used for home manufacturing.

If you can think it, you can make it. We're only limited by the size of the object.

Having parts you can use in the 'reel" world is stone, flat-out wonderful!
Capt. John
Manistee, Michigan
Reel Amateur at 3D printing
Fishing Tackle Manufacturer & Webmaster for:
http://www.michiganangler.com
http://www.michigansportsman.com

User avatar
Capt. John
Posts: 271
Joined: Sun Apr 13, 2014 7:48 pm
Location: Manistee, MI
Contact:

Re: Fishing lures & prototyping

Post by Capt. John » Fri Oct 17, 2014 10:49 pm

Had some pro SLAs made to compare against the M2 printed parts. 2 pro SLAs were $140.
M2 prototypes? ...under a buck apiece. I know now, pro SLAs are un-needed.

SLAs did have a more finished production part look without the print lines, but at $70 a copy, they should have.

When legal patent issues are taken care of ...I'll show off the parts I have made with master-designer and mind reader, jimc.
He''s been helping me develop tackle going back to May of this year.

Started on this long journey back in April when I hit the hip for the M2 and have zero regrets.
Filament drive? ...this is a weak link, having an optional all metal machined single extruder drive would make
M2 head and shoulders above the rest.

Never would have got to this point where I'm having 2 injection molding tools being made
from M2 prototypes without the support from the members here!
Capt. John
Manistee, Michigan
Reel Amateur at 3D printing
Fishing Tackle Manufacturer & Webmaster for:
http://www.michiganangler.com
http://www.michigansportsman.com

jsc
Posts: 1864
Joined: Thu Apr 10, 2014 4:00 am

Re: Fishing lures

Post by jsc » Sat Oct 18, 2014 1:12 am

Have you looked into resin casting at all? I've been interested in it for a while, and maybe will start playing with it this winter. Your lures look like they would be a good candidate for printed two-part negative molds.

User avatar
jimc
Posts: 2888
Joined: Wed Apr 09, 2014 11:30 pm
Location: mullica, nj
Contact:

Re: Fishing lures

Post by jimc » Sat Oct 18, 2014 1:41 am

i have done a bit of it over the years. i have a vacuum chamber to degas casting resins. not to answer for john but i think he needs quite a bit more volume of parts jin. thousands i believe.

User avatar
Capt. John
Posts: 271
Joined: Sun Apr 13, 2014 7:48 pm
Location: Manistee, MI
Contact:

Re: Fishing lures

Post by Capt. John » Sat Oct 18, 2014 3:13 am

I have to make parts in the 1000s out of polycarb.
Injection molding? ...while the tooling is expensive, the parts are not.

Goal with the M2 was to make test parts, test geometry as effected by water flow.
Made over 8 versions in 2 kinds of prototypes, with an off-shot 3rd prototype that
ended up being version 5, of product 3.

Made well over 200 test parts, some ABS, most were PET+.
There is no other financial alternative that compares with the M2 spitting out
low cost test pieces on demand for in-the-water testing.

Mission accomplished. Now on to other design products once version 5 is in
full production towards the end of this December. Takes a long time
to make a mold in a CNC machine where cooling water passages have
to be engineered.
Salmon_Symposium_3.27.04 011.jpg
Salmon_Symposium_3.27.04 011.jpg (210.57 KiB) Viewed 5842 times

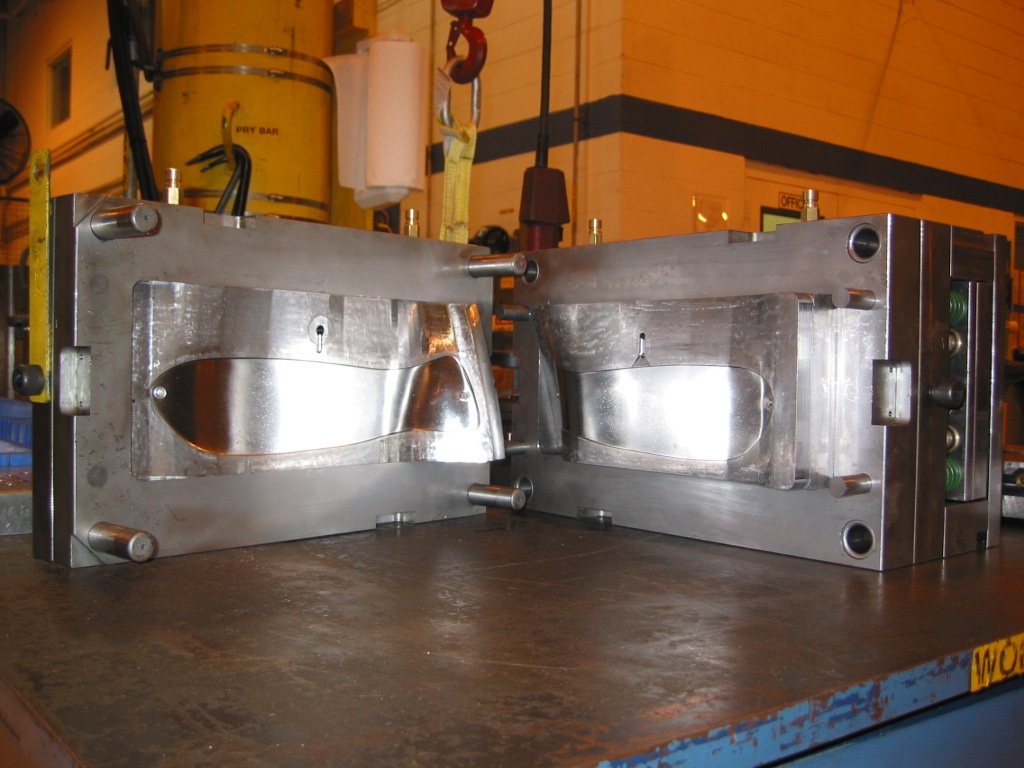

First tool I had made in 2004
