My 80mm Bed Fan Mod

Postby zemlin » Sat Apr 02, 2016 7:41 pm











https://grabcad.com/library/makergear-m ... and-duct-1

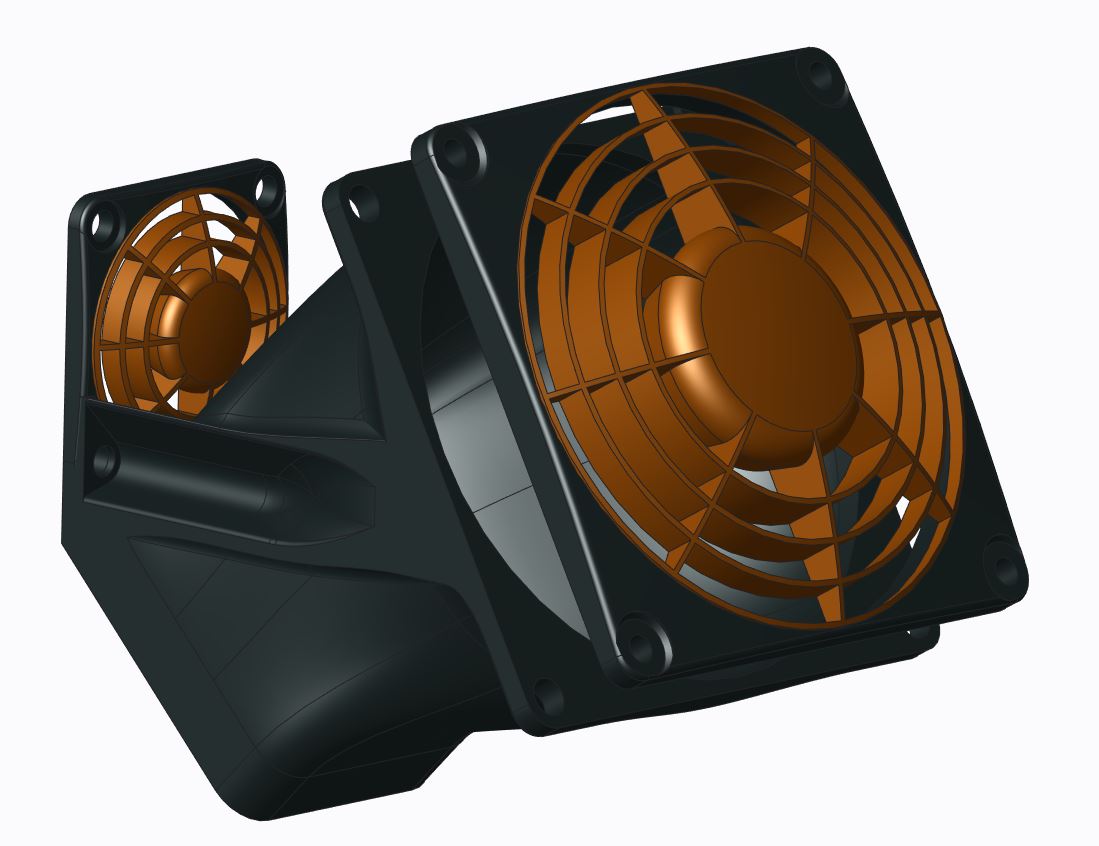

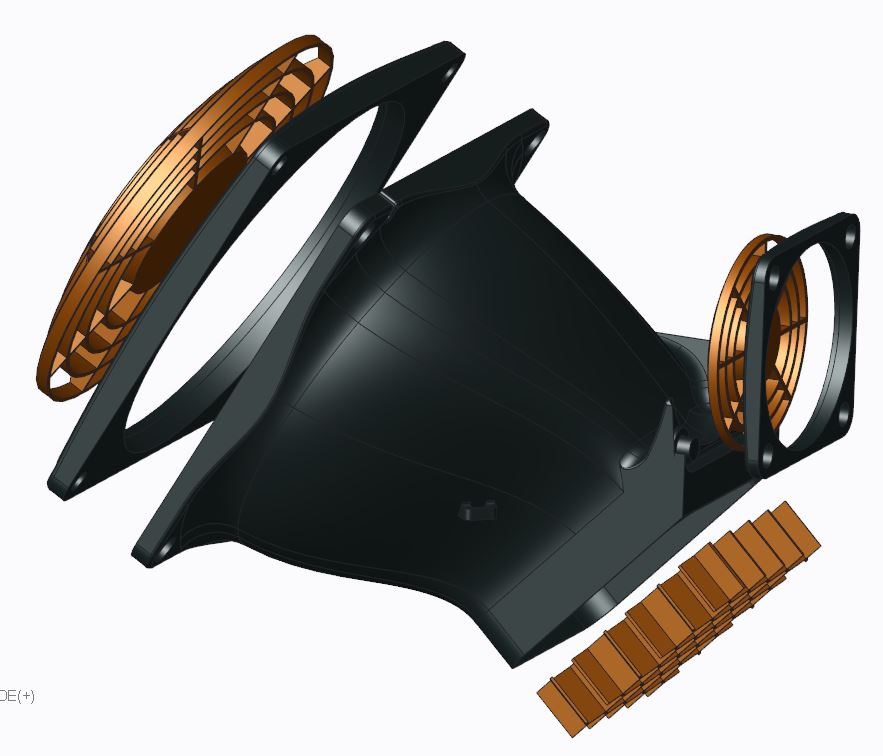

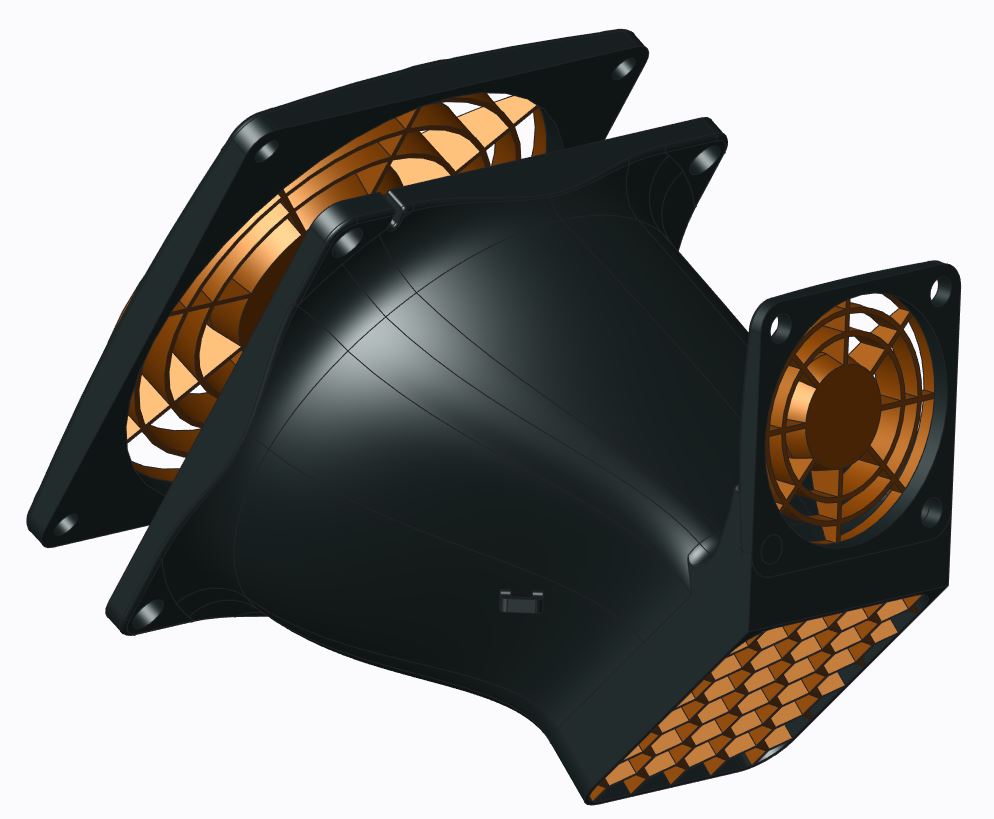

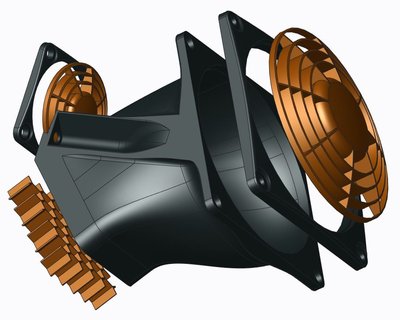

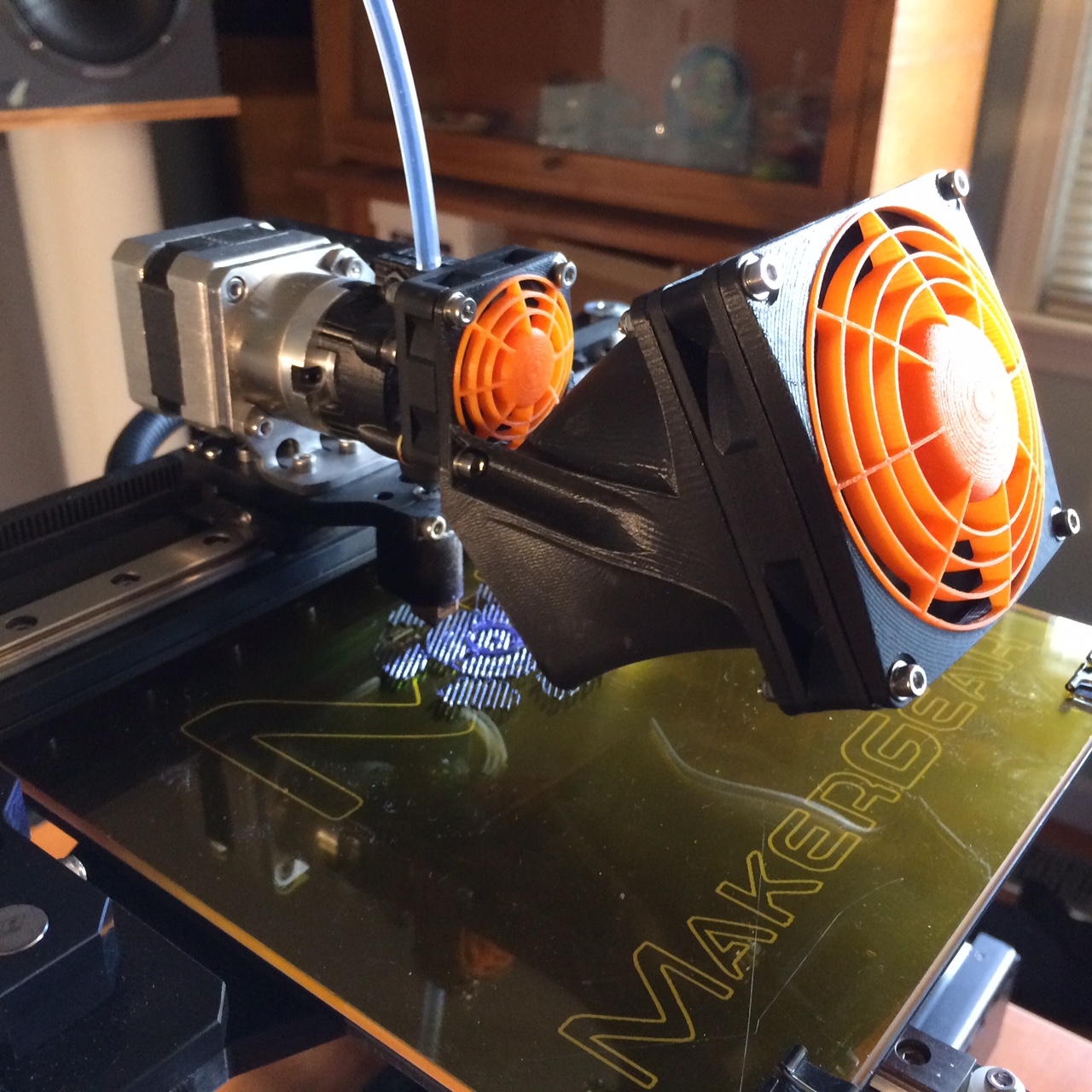

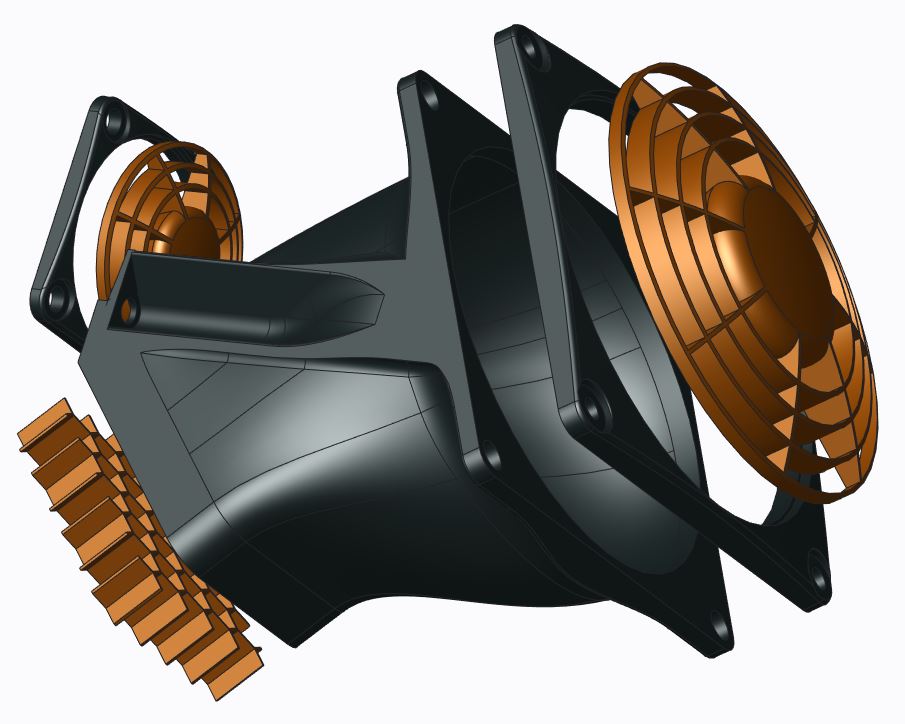

The duct builds with the 80mm flange on the table. I made everything in PLA with .1mm layers.
User avatar
zemlin

Posts: 439
Joined: Thu Feb 04, 2016 9:32 pm
Location: Indianapolis, Indiana

Re: My 80mm Bed Fan Mod

Postby Jules » Sat Apr 02, 2016 8:05 pm

Nice! That oughta cool it down! :D
User avatar
Jules

Posts: 3150
Joined: Wed Jan 21, 2015 1:36 am

Re: My 80mm Bed Fan Mod

Postby zemlin » Sat Apr 02, 2016 8:24 pm

Jules wrote:Nice! That oughta cool it down! :D

It does, but my main goal was to run the fan slower for less noise.
User avatar
zemlin

Posts: 439
Joined: Thu Feb 04, 2016 9:32 pm
Location: Indianapolis, Indiana

Re: My 80mm Bed Fan Mod

Postby jsc » Sat Apr 02, 2016 10:15 pm

Nice model. The problem is, it turns out high CFM 80mm fans rely on moving a large volume of air at low pressure to get that CFM, which is the opposite of what you want in a ducted fan.
jsc

Posts: 1863
Joined: Thu Apr 10, 2014 4:00 am

Re: My 80mm Bed Fan Mod

Postby zemlin » Sat Apr 02, 2016 10:28 pm

jsc wrote:Nice model. The problem is, it turns out high CFM 80mm fans rely on moving a large volume of air at low pressure to get that CFM, which is the opposite of what you want in a ducted fan.
As I said above, my main goal was to maintain cooling with a lower RPM fan - not to increase CFM.
User avatar
zemlin

Posts: 439
Joined: Thu Feb 04, 2016 9:32 pm
Location: Indianapolis, Indiana

Re: My 80mm Bed Fan Mod

Postby pyronaught » Tue Apr 05, 2016 11:11 pm

Love the color scheme. What CAD program are you using?
Experience is what you get when you didn't get what you wanted.
User avatar
pyronaught

Posts: 669
Joined: Mon Dec 01, 2014 8:24 pm

Re: My 80mm Bed Fan Mod

Postby zemlin » Wed Apr 06, 2016 5:43 pm

I use PTC Creo (aka Pro/ENGINEER) via the day job.
User avatar
zemlin

Posts: 439
Joined: Thu Feb 04, 2016 9:32 pm
Location: Indianapolis, Indiana
