Tree for architect model

Post by Pekish79 » Fri Oct 09, 2015 4:26 pm

Does anyone has any nice looking tree for architectural models

scale 1/250 (pretty tiny) or 1/100

I have been looking around and i found only the tree made with the customized tree

http://www.makerbot.com/blog/2014/03/27 ... inted-tree

but i am not too crazy about them i am making my own as well but i would like to know is someone has ever done any

User avatar
Pekish79
Posts: 185
Joined: Fri Oct 09, 2015 4:04 pm

Re: Tree for architect model

Post by Pekish79 » Fri Oct 09, 2015 9:12 pm

i ended up doing them myself i was wondering if someone has any cool idea for trees

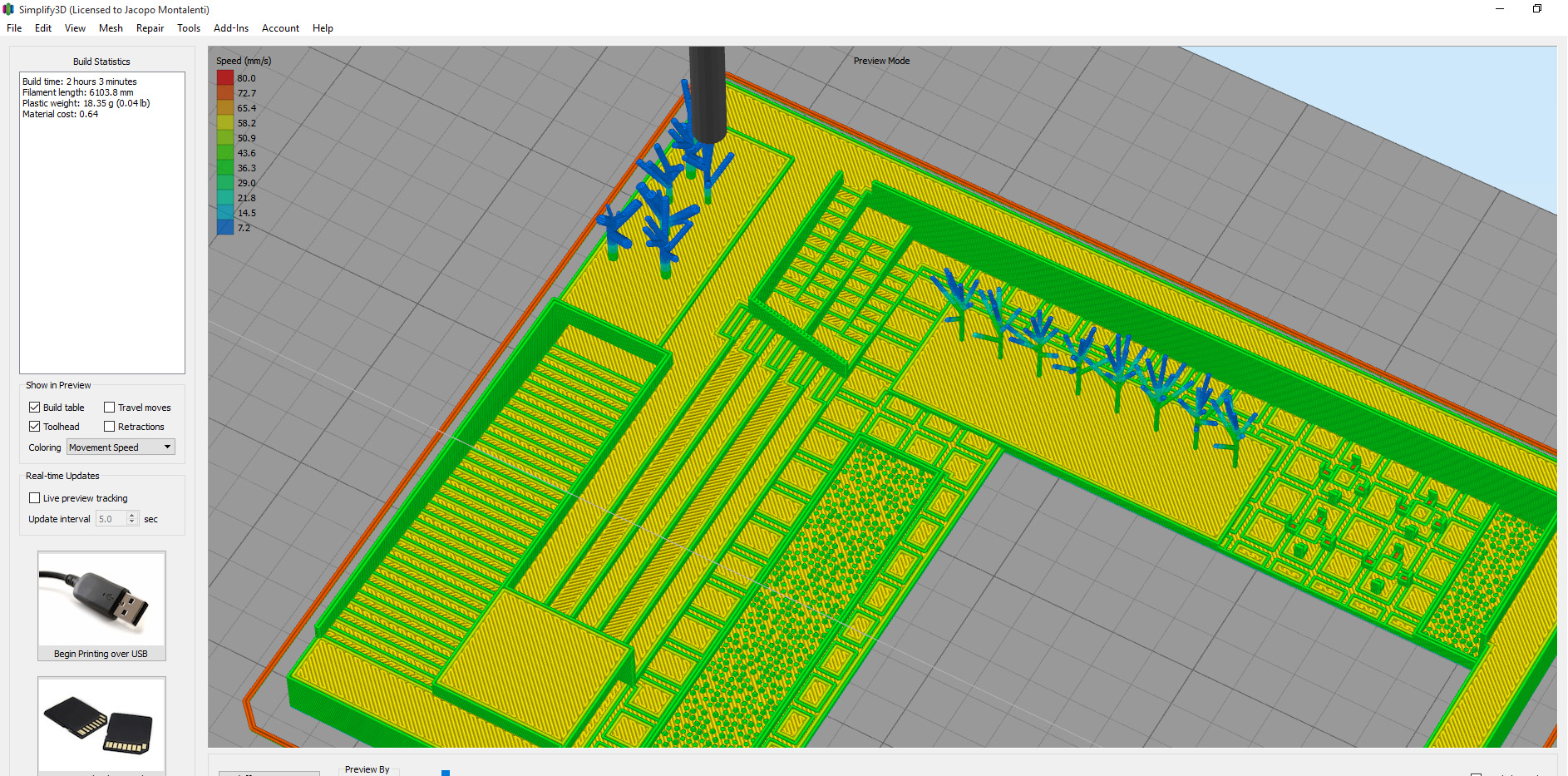

here is the picture of what i modeled
Attachments
trees
(912.7 KiB) Downloaded 63 times

User avatar
ednisley
Posts: 1034
Joined: Fri Apr 11, 2014 5:34 pm
Location: Halfway up the Hudson
Contact:

Re: Tree for architect model

Post by ednisley » Fri Oct 09, 2015 11:36 pm

Pekish79 wrote:cool idea for trees
Those are, alas, probably not printable individually and definitely not in the groups you've shown: they're too small with perilous overhang. The nozzle will collide with the branch tips and knock them down, one by one.

The Thingiverse trees use an algorithm that tapers them from base to tip and produces chunky branches with gradual angles. Judging from the pictures, they're also much, much, much larger than the ones you want:
http://www.thingiverse.com/make:111722


As a rule of thumb, you can't print object features less than a few millimeters in diameter. Near-horizontal "wires" similar to your tree branches tend to curl as successive layers of plastic cool, producing poor results.

Tiny objects and 3D printing don't mix well; perhaps your layouts could have holes for standard architectural model trees?

User avatar
Pekish79
Posts: 185
Joined: Fri Oct 09, 2015 4:04 pm

Re: Tree for architect model

Post by Pekish79 » Sat Oct 10, 2015 12:33 am

yes of course i could just leave the hole i was just wondering how it would look with this type of tree

User avatar
insta
Posts: 2018
Joined: Tue Sep 16, 2014 3:59 am

Re: Tree for architect model

Post by insta » Mon Oct 12, 2015 3:32 pm

I know 3D printing is the universal hammer, but this is begging for a trip to the local hobby store for some model railroad parts.
Custom 3D printing for you or your business -- quote [at] pingring.org

MagicEngineer
Posts: 114
Joined: Thu Aug 20, 2015 12:39 am

Re: Tree for architect model

Post by MagicEngineer » Fri Oct 16, 2015 1:02 pm

Maybe something like this would be an alternative. http://www.thingiverse.com/thing:217710 Each time you run the customizer it creates a new random version, so you will have a more natural look.
