Cool LED Mod for M2?
Cool LED Mod for M2?
Anyone have any cool LED mods for the M2? Maybe like some LED spotlights on the print area?
Re: Cool LED Mod for M2?
There's some discussion of adding LED light strips to the M2 frame here: Where to get 12v power for an LED light strip?
(A mod I'm definitely looking into... as I have a few feet of LED light strip just looking for a good home)
(A mod I'm definitely looking into... as I have a few feet of LED light strip just looking for a good home)
Re: Cool LED Mod for M2?
Hey apk,
Yeah, I was thinking the same thing. I've got a 5m strip of LED's and other single LED's I've been looking to use for a while. I'm not sure if I can separate the LED strip into sections though...I'm sure it can probably be done, I've just never done it before.
Yeah, I was thinking the same thing. I've got a 5m strip of LED's and other single LED's I've been looking to use for a while. I'm not sure if I can separate the LED strip into sections though...I'm sure it can probably be done, I've just never done it before.
- willnewton
- Posts: 479
- Joined: Wed Apr 09, 2014 8:32 pm
Re: Cool LED Mod for M2?
Look at the strip and check if the LEDs are arranged in sections of about 3 or so. There is usually a dividing line with 2-4 solder pads on both sides. In between those pads is where you make the cut. Then solder your leads on.
I'm finally back to where I started two days ago!
A thread with some stuff in it I update every once in a while. viewtopic.php?f=8&t=9
See some of my stuff http://www.thingiverse.com/willnewton/favorites
A thread with some stuff in it I update every once in a while. viewtopic.php?f=8&t=9
See some of my stuff http://www.thingiverse.com/willnewton/favorites
-
- Posts: 1
- Joined: Sat Jan 13, 2018 8:47 am
Re: Cool LED Mod for M2?
Hello jdlev,jdlev wrote:Anyone have any cool LED mods for the M2? Maybe like some LED spotlights on the print area?
I also have the same query. Can anyone give the proper solution to it?
Every response will be appreciated.......!!
Thanks.
Re: Cool LED Mod for M2?
Just finished doing headlights.. see this thread viewtopic.php?f=10&t=6598InterlightTechnology wrote:Hello jdlev,jdlev wrote:Anyone have any cool LED mods for the M2? Maybe like some LED spotlights on the print area?
I also have the same query. Can anyone give the proper solution to it?
Every response will be appreciated.......!!
Thanks.
Re: Cool LED Mod for M2?

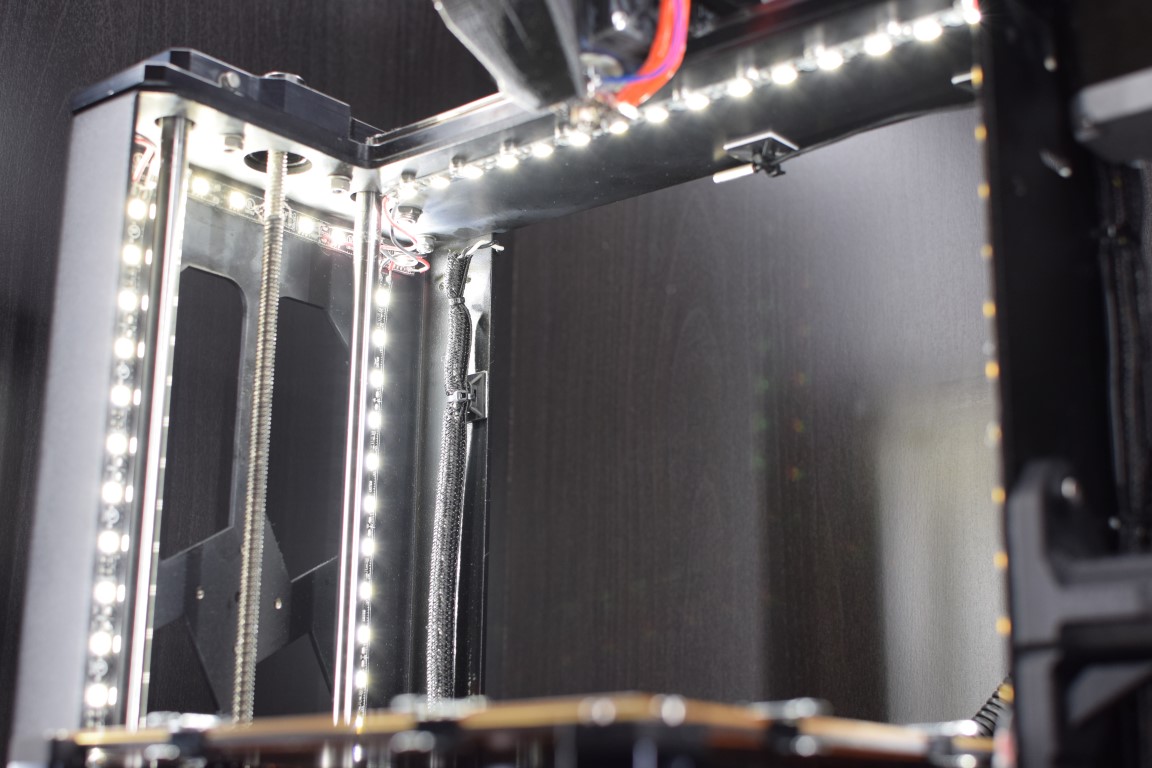

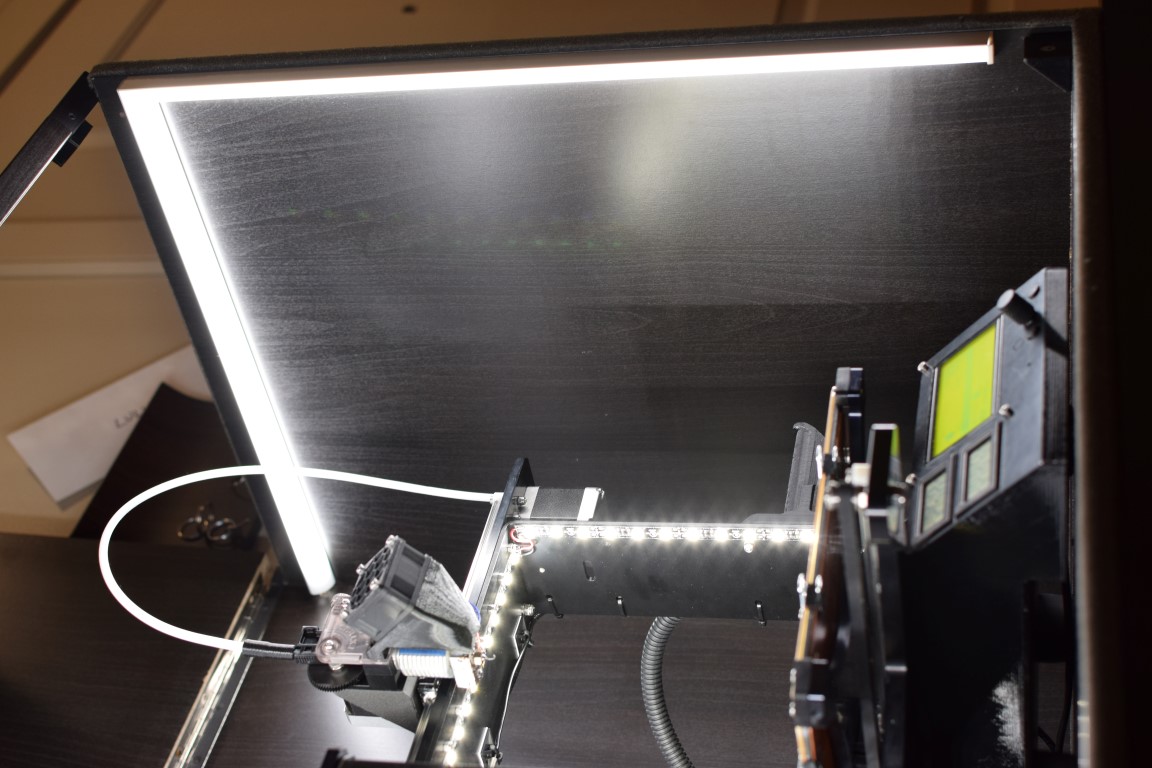

Here is what I've done for LED mods. I have bare tape lighting on the printer itself, for illuminating the print. For the enclosure, I have aluminum corner extrusion with tape lighting inside of a frosted lens. I have dimmer circuits for both the printer lighting and the enclosure lighting. If I'm printing overnight, I will turn the lighting down to the lowest setting, so it doesnt illuminate my whole condo, but it can easily be checked on. Sometimes I leave the enclosure lighting on low even when the printer isnt going, just because I like how cool the printer looks inside the case with a subtle glow around it haha... Nerd things.
The printer lighting was awesome, but I dont have very good lighting over my print/computer area, so it was annoying to work on the printer itself if it wasnt bright and sunny outside. The enclosure lighting has made it very pleasant to work on the printer.
The printer lighting was awesome, but I dont have very good lighting over my print/computer area, so it was annoying to work on the printer itself if it wasnt bright and sunny outside. The enclosure lighting has made it very pleasant to work on the printer.
Re: Cool LED Mod for M2?
Wow that’s awesome. I just got an M2 and would love to build this. Do you have anymore info for the enclosure and lightning?Farr0wn3d wrote: ↑Mon Apr 02, 2018 3:25 amHere is what I've done for LED mods. I have bare tape lighting on the printer itself, for illuminating the print. For the enclosure, I have aluminum corner extrusion with tape lighting inside of a frosted lens. I have dimmer circuits for both the printer lighting and the enclosure lighting. If I'm printing overnight, I will turn the lighting down to the lowest setting, so it doesnt illuminate my whole condo, but it can easily be checked on. Sometimes I leave the enclosure lighting on low even when the printer isnt going, just because I like how cool the printer looks inside the case with a subtle glow around it haha... Nerd things.
The printer lighting was awesome, but I dont have very good lighting over my print/computer area, so it was annoying to work on the printer itself if it wasnt bright and sunny outside. The enclosure lighting has made it very pleasant to work on the printer.
